Blister Packing for Form and Function

Combo-2030 250EVO 300FBR 240PLUS EXCEL-44 FLATRON-SXL VIALVAC-II DE-BLISTER

Features:
  • 30 Cycles/min for both Cold Forming and Thermoforming
  • Auto feeding system using PLC and pneumatics
  • User friendly HMI

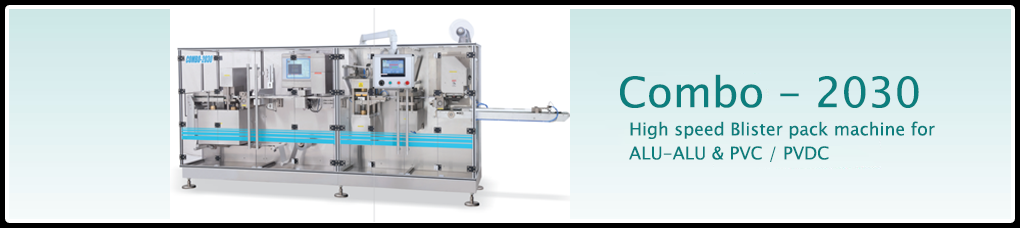

Request Information on Model: Combo-2030

Packaging Materials

Base Material: PVC / PVC-PVDC, ACCLAR / TRIPLEX / PP / ALU-ALU (OPA)

Lidding Material: Aluminum with heat sealable lacquer coating.

View Combo 2030 Brochure

Utilities Requirements

Compressed Air:  26 CFM dry air at Constant pressure 8.0 Bar

Water Cooler: 150 Liter/Hour. Temp. 15C to 20C

Electrical Power: 7.5 KW, 415 VAC, 50Hz, 3 Phase + N + E

Earthing Cable: Copper, 2.5 mm² (Minimum)

Technical Specifications:

DESCRIPTION COLD FORM ALU-ALU THERMOFORMING (WHEN FITTED)
Base Film Width. Alu. Foil 190 mm Pvc Film 190 mm
Blister Foil Thick. Alu. 0.13 – 0.18 mm Pvc 0.25 – 0.50 mm
Reel Dia. Alu. 440 mm Pvc 440 mm
Sealing Foil Thick. 0.02 – 0.03 mm 0.02 – 0.03 mm
Pack Length. 180 mm 180 mm
Pack Width. 140 mm 140 mm
Forming Depth. 20 mm 26 mm
Machine Speed (Size & Shape dependent) 30 Cycles / Min. 30 Cycles / Min.
Approx. Machine Dimension With conveyor Length: 4500 mm
Without conveyor Length: 3600 mm
Width: 1100 mm
Height: 1800 mm
Additional Machine Length (when demanded) With conveyor Length: 5400 mm
Net Weight Approx. 2200 Kgs.

N.B.: Due to continuous development and improvement company reserves the right to alter the specifications without prior notice.

Optional Features:
  • Batch code letter embossing attachment
  • No fills detection and rejection system
  • Print registration control for PACK TO PRINT
  • Cross perforation attachment
  • Poly – carbonate guard
  • CE certification
Request Information on Model: 250 EVO

Packaging Materials

Base Material: PVC, PVC/PVDC, PVC/AL/OPA, ACLAR.

Lidding Material: Aluminum with heat sealable lacquer or PVDC coating, Glassine paper.

View 250 EVO Brochure

Utilities Requirements

Compressed Air: 11 CFM dry air, minimum pressure 6 kgs/cm2

Water Cooler: 160 Liter/Hour. Temp. 15C to 20C

Electrical Power: 8.5 KW, 415 VAC, 3 Phase + N + E

Earthing Cable: Copper, 2.5 mm² (Minimum)

Technical Specifications:

DESCRIPTION Model: 250 EVO
PVC Base Film Width Max 230 mm
PVC Film Thickness Max. 0.2 – 0.35 mm
Sealing Foil Width Max. 226 mm
Sealing Foil Thickness Max. 0.02 – 0.04 mm
Machine Format Area Max. 230 mm x 185 mm
Forming Depth 12 mm
Max. Output 35 Strokes/Min.
Machine Dimensions (mm) L: 3850 | W: 1100 | H: 1800
N.B.: Due to continuous development and improvement company reserves the right to alter the specifications without prior notice.

Optional Features:
  • Batch code letter embossing attachment
  • No fills detection and rejection system
  • Print registration control for PACK TO PRINT
  • Cross perforation attachment
  • Poly – carbonate guard
  • CE certification

Packaging Materials

Base Material: PVC, PVC/PVDC, PVC/AL/OPA, ACLAR.

Lidding Material: Aluminum with heat sealable lacquer or PVDC coating, Glassine paper.

Utilities Requirements

Compressed Air: 11 CFM dry air, minimum pressure 6 kgs/cm2

Water Cooler: 160 Liter/Hour. Temp. 15C to 20C

Electrical Power: 11 KW, 415 VAC, 3 Phase + N + E

Earthing Cable: Copper, 2.5 mm² (Minimum)

View 300FBR Brochure
Request Information on Model: 300FBR

Technical Specifications:

DESCRIPTION Model: 300FBR
PVC Base Film Width Max 230 mm
PVC Film Thickness Max. 0.2 – 0.35 mm
Sealing Foil Width Max. 226 mm
Sealing Foil Thickness Max. 0.02 – 0.04 mm
Machine Format Area Max. 238 mm x 100 mm
Forming Depth 12 mm
Formed Web Linear Speed Max. 3600 mm/Min.
Machine Dimensions (mm) L: 3800 (3100 without conveyor)| W: 1200 | H: 1950
N.B.: Due to continuous development and improvement company reserves the right to alter the specifications without prior notice.

Optional Features:
  • Batch code letter embossing attachment
  • No fills detection and rejection system
  • Print registration control for PACK TO PRINT
  • Poly – carbonate guard
  • CE certification
Request Information on Model: 240 Plus

Packaging Materials

Base Material: PVC/PVC-PVDC/PVC/AL/OPA /ACLAR.

Lidding Material: Aluminium with Heat Sealable Lacquer or PVDC Coating, Glassine paper.

Utilities Requirements

Compressed Air: 11 CFM dry air, minimum pressure 8 kgs/cm2

Water Cooler: 160 Liter/Hour. Temp. 20 ± 2 C

Electrical Power: 7.5 KW, 415 VAC ± 10% , 3 Phase + N + E

Earthing Cable: Copper, 2.5 mm2 (Minimum)

View 240 Plus Brochure

Technical Specifications:

DESCRIPTION Model: 240 Plus
PVC Base Film Width Max 210 mm
PVC Film Thickness Max. 0.2 – 0.4 mm
Sealing Foil Width Max. 206 mm
Sealing Foil Thickness Max. 0.02 – 0.04 mm
Pack Length 200 mm
Pack Width 100 mm
Forming Depth 16 mm
Max. Output 2400 Blister/Min.
Machine Dimensions (mm) L: 2900 | W: 1100 | H: 1800
N.B.: Due to continuous development and improvement company reserves the right to alter the specifications without prior notice.

Features:
  • Packing Speed: 40 Cycles/min for Thermo-Forming. 35 Cycles/min for Cold-Forming.
  • Feeding System: Auto feeding system by PLC Logic with pneumatic combination.
  • Servo Drive Indexing: : Servo web indexing by rigid PLC Logic.
  • Operator Interface: User friendly HMI touch screen (Human machine interface).
  • Pneumatic Operations: Festo make for fast response, oil free, minimal wear and tear, easy maintenance and universal availability of bought outs.

Packaging Materials

Base Material: PVC / PVC-PVDC / ACCLAR / TRIPLEX / PP / ALU-ALU (OPA).

Lidding Material: Aluminium with Heat Sealable Lacquer Coating.

Utilities Requirements

Compressed Air: 11 CFM dry air, minimum pressure 6 kgs/cm2
Water Cooler: 120 Liter/Hour. Temp. 15 ± 2 C
Electrical Power: 6.5 KW, 415 V ± 10% , 3 Phase + N + E
Earthing Cable: Copper, 2.5 mm2 (Minimum)
View Excel - 44 Brochure
Request Information on the Excel - 44

Technical Specifications:

DESCRIPTION COLD FORM ALU-ALU THERMOFORMING (WHEN FITTED)
Base Film Width. Alu. Foil 225 mm Pvc Film 225 mm
Blister Foil Thick. Alu. 0.13 – 0.15 mm Pvc 0.20 – 0.40 mm
Reel Dia. Alu. 440 mm Pvc 440 mm
Sealing Foil Thick. 0.02 – 0.04 mm 0.02 – 0.04 mm
Sealing Foil Width. 225 mm 225 mm
Pack Length. 215 mm 215 mm
Pack Width. 140 mm 140 mm
Forming Depth. 12 mm 12 mm
Machine Speed 35 Cycles / Min. 40 Cycles / Min.
Approx. Machine Dimension With conveyor Length: 4200 mm
Without conveyor Length: 3600 mm
Width: 1100 mm
Height: 1800 mm
Net Weight Approx. 1800 Kgs.

N.B.: Due to continuous development and improvement company reserves the right to alter the specifications without prior notice.

Features:
  • Packing Speed: 35 Cycles/min. for Thermo-Forming. 35 Cycles/min. for Cold-Forming.
  • Feeding System: feeding system by PLC Logic with pneumatic combination.
  • Servo Drive Indexing: Servo web indexing by rigid PLC Logic.
  • Operator Interface: User friendly HMI touch screen (Human machine interface).
  • Pneumatic Operations: Festo make for fast response, oil free, minimal wear and tear,easy maintenance and universal availability of bought outs.

Packaging Materials

Base Material: PVC / PVC-PVDC / ACCLAR / TRIPLEX / PP / ALU-ALU (OPA).

Lidding Material: Aluminium with Heat Sealable Lacquer Coating.

Utilities Requirements

Compressed Air: 24 CFM dry air at constant pressure 8 kg/cm2
Water Cooler: 80 Liter/Hour. Temp. 15 ± 2 C, Pressure – 2.5 Bar (Max.)
Electrical Power : 4.5 KW, 415 V ± 10% , 3 Phase + N + E, 50Hz
View Flatron - SXL Brochure
Request Information on the Flatron - SXL

Technical Specifications:

DESCRIPTION COLD FORM ALU-ALU THERMOFORMING (WHEN FITTED)
Base Film Width.  Alu. Foil 150 mm Pvc Film 220 mm
Blister Foil Thick. Alu. 0.13 – 0.15 mm Pvc 0.20 – 0.40 mm
Reel Dia. Alu. 440 mm Pvc 440 mm
Sealing Foil Thick. 0.02 – 0.04 mm 0.02 – 0.04 mm
Sealing Foil Width. 150 mm 150 mm
Pack Length. 140 mm 140 mm
Pack Width. 100 mm 100 mm
Forming Depth. 12 mm 12 mm
Machine Speed 30 Cycles / Min. 30 Cycles / Min.
Floor Space Approx. Length 3000 mm   |   width 950 mm   |   height 1700 mm
Approx. Net Weight. 1050 kgs. {Approx.}

Features:
  • Feeding System: Automatic feeding through teflon coated star wheels.
  • Pneumatic Operations: Festo makes for fast response, oil free, minimal wear and tear, easy maintenance and universal availability of bought outs.
  • Main Drive: A.C. Variable frequency drive for speed control.

Packaging Materials

Base Material: PVC/PVC-PVDC/PVC/AL/OPA/CLAR.

Lidding Material: Aluminium with Heat Sealable Lacquer or PVDC Coating, Glassine paper.

Utilities Requirements

Compressed Air: 11 CFM dry air, minimum pressure 8 kgs/cm2
Water Cooler: 160 Liter/Hour Temperature 15 C ± 2 C
Electrical Power : 7.5 KW, 415 V, 3 Phase + N + E, 50Hz
View VIALVAC - II Brochure
Request Information on the VIALVAC - II

Technical Specifications:

DESCRIPTION Model: VIALVAC – II
PVC Base Film Width Max 210 mm
PVC Film Thickness Max. 0.2 – 0.4 mm
Sealing Foil Width Max. 206 mm
Sealing Foil Thickness Max. 0.02 – 0.04 mm
Pack Length 200 mm
Pack Width 120 mm
Forming Depth 22 mm
Max. Output 35 Strokes/Min.
Machine Dimensions (mm) L: 3200 | W: 950 | H: 2000
N.B.: Due to continuous development and improvement company reserves the right to alter the specifications without prior notice.

Features:
  • Fast Recovery.
  • Minimum product breakage during recovery.
  • Accommodates combination packs.
  • Low noise level and low maintenance.
  • Manual feeding of blister packs makes visual inspection easy.
  • Transparent covers in strategic places for clear visibility by the operator.
  • Long life Hypalon coated rubber roller.
  • Ease & mobility due to castors.
Operational Parameters:


In case of products blister filled in thermoformed PVC film and sealed with HSL coated aluminium foil, output efficiency as high as 90% can be achieved. The machine achieves 60% efficiency in case of recovery from glass lined paper foils.

Maximum safe recovery of products is assured from packs comprising of PVC film with maximum thickness of 0.2 to 0.4 mm, sealed with aluminium foils having maximum thickness 0.02 to 0.04mm.

Maximum pack width accepted is 110 mm. However there is no restriction on the length of the packs.

View De-Blister Brochure
